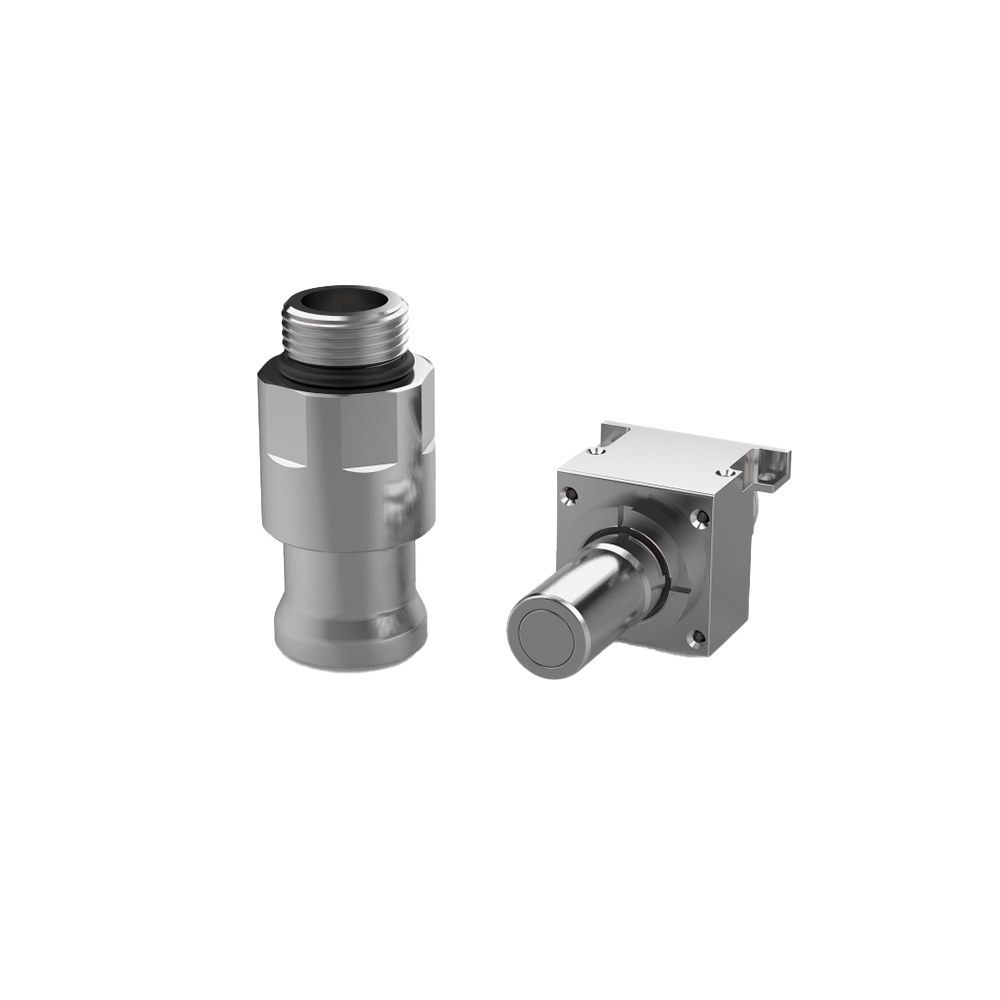

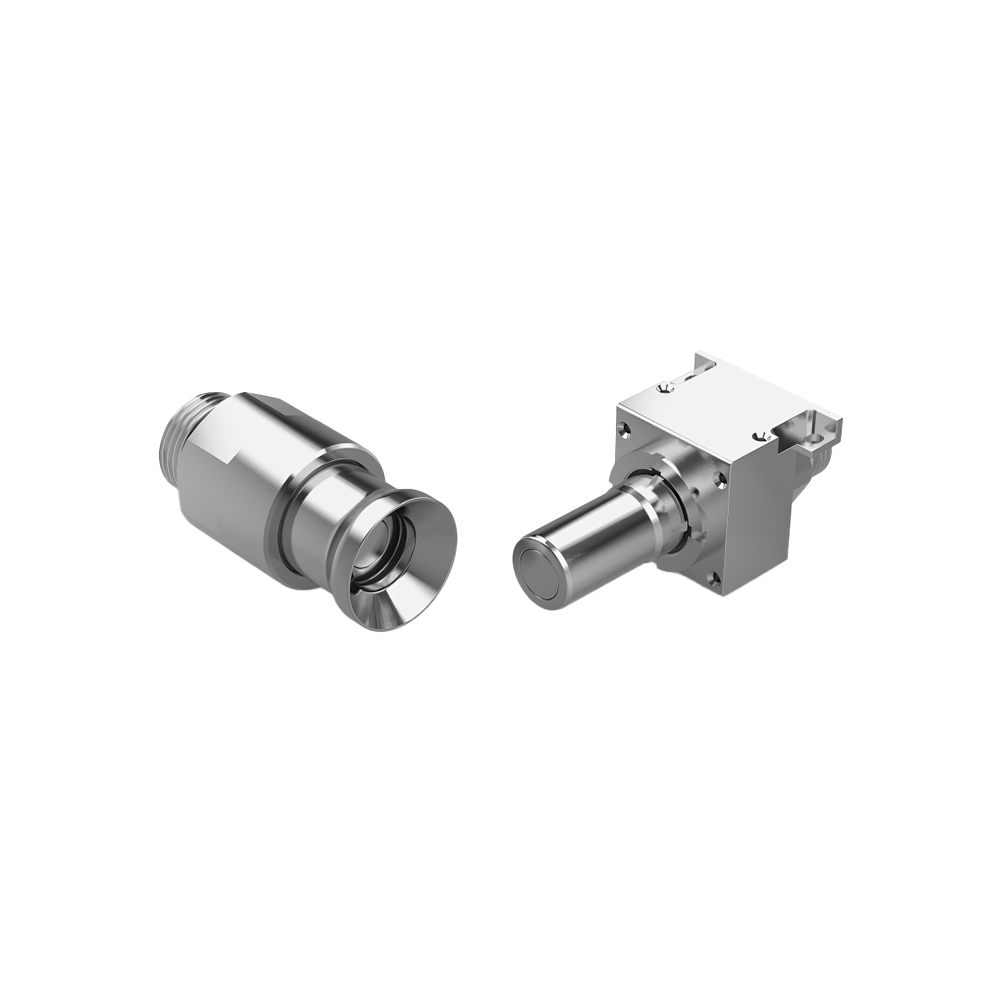

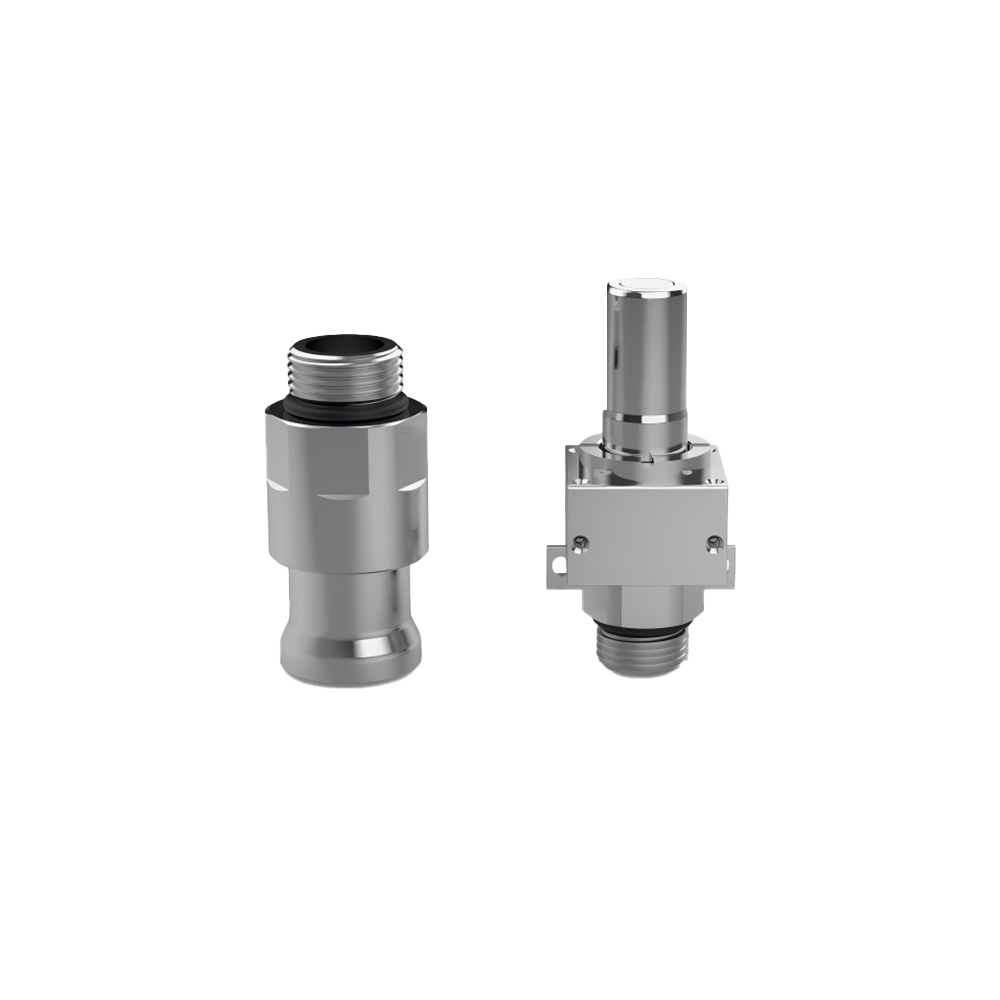

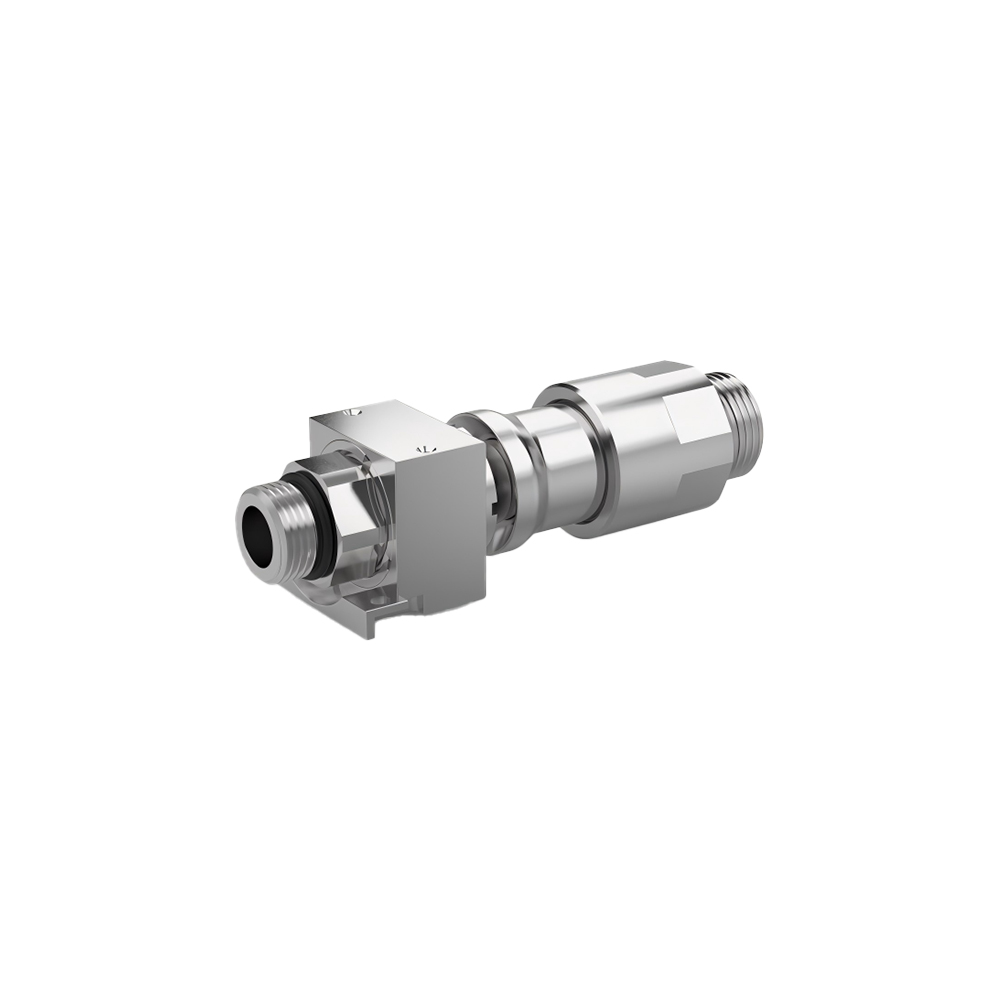

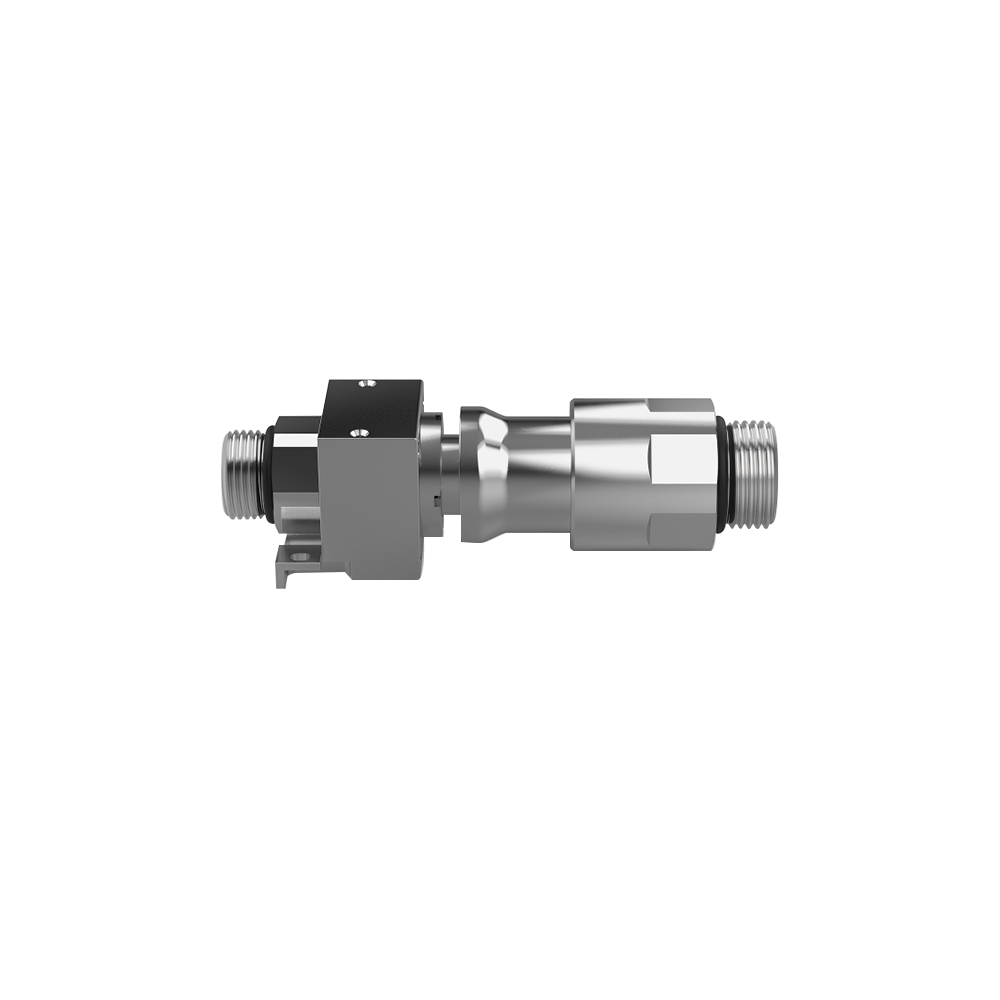

PBMC is a quick coupling developed under the OCP specification for data center liquid cooling applications. It features a drip free design, high misalignment tolerance and an integrated floating mechanism to simplify piping installation. As an open specification, PBMC enables interchangeability among products from different manufacturers that comply with the same standard. The built in floating mechanism provides radial misalignment tolerance of ±5 mm and angular misalignment tolerance of ±2.5°, improving the flexibility of piping installation for both hose and tube.
| Nominal Diameter | DN12 |
| Working Pressure | 0-5.2bar |
| Misalignment Data | X/Y±5mm, Z±3.25mm, angularity 2.5° |
| Body Material | SS 316L |
| Working Temperature | -5°C ~ 60°C |
| Seal Material | EPDM (HNBR、 FVMQ optional) |
| Fluids | Ethylene glycol coolant, propylene glycol cool-ant, deionized water, etc |
| Product Features | Interchangeable with OCP specification products |
Zero Leakage
Hot disconnect at 6.9 bar
5,000 safe mating cycles
Low Flow Resistance
