Customized Engineering Solutions
Non-Standard Design for All Types of Liquid Cooling Equipment

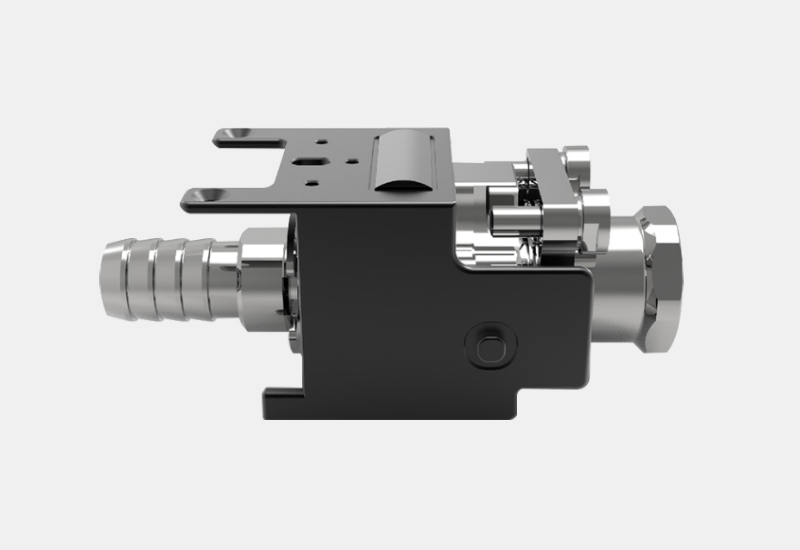

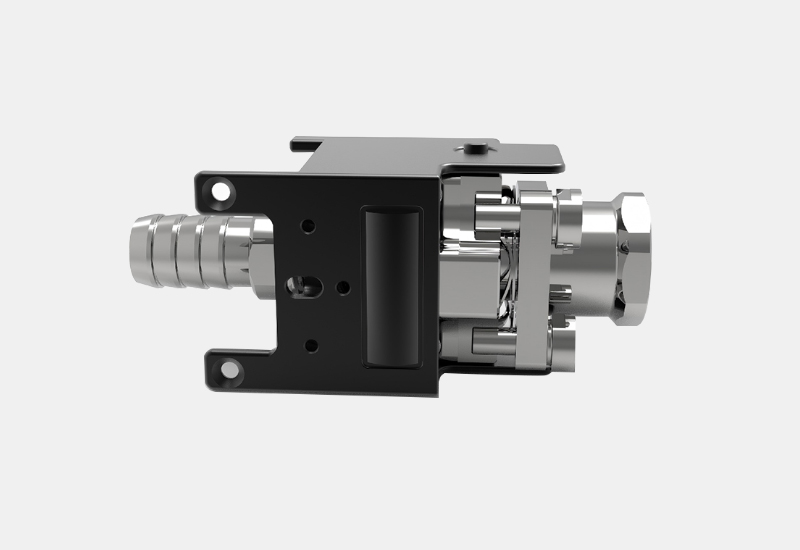

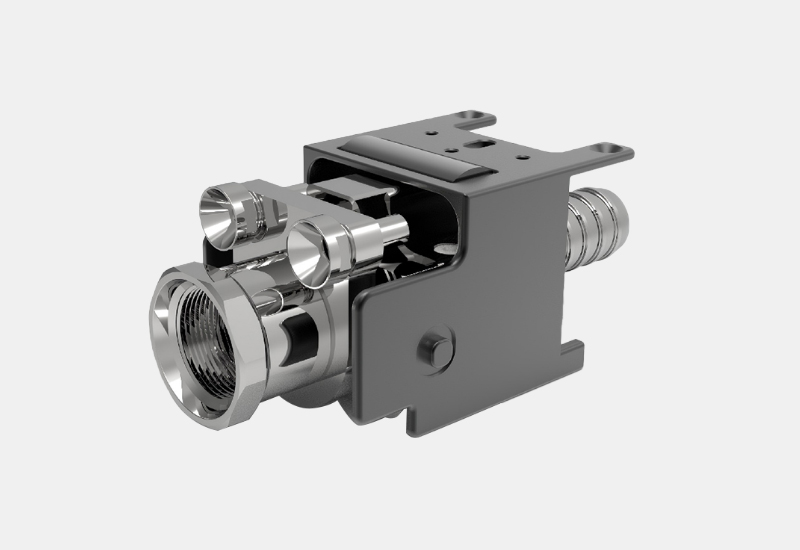

GCC Blind-Mate Coupling
| Working Pressure | -1-8.5bar |
| Misalignment Data | X/Y±2.5mm, Z－4mm, Rotational Angle2.5° |
| Working Temperature | 5℃ ~ 65℃ |
| Body Material | 316L Stainless Steel |
| Seal Material | EPDM |
| Fluids | Ethylene glycol coolant, propylene glycol coolant, deionized water, etc; |
| Product Features | Large tolerance, rotatable & self-centering |

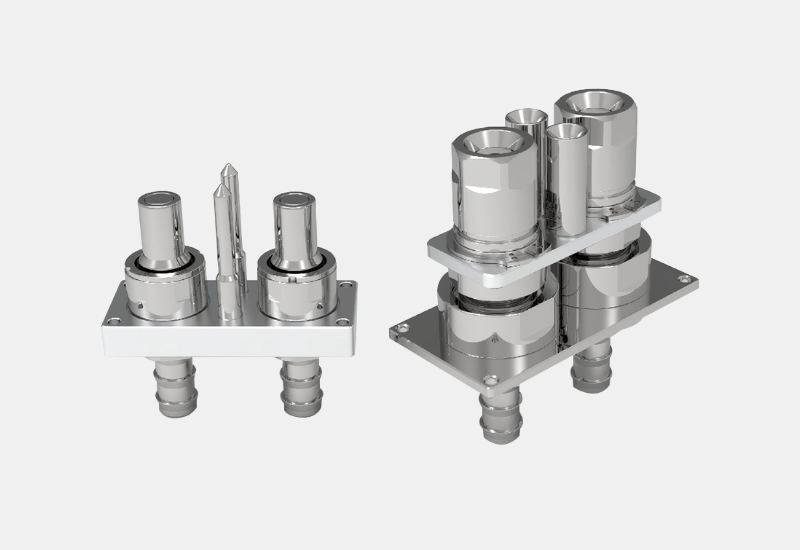

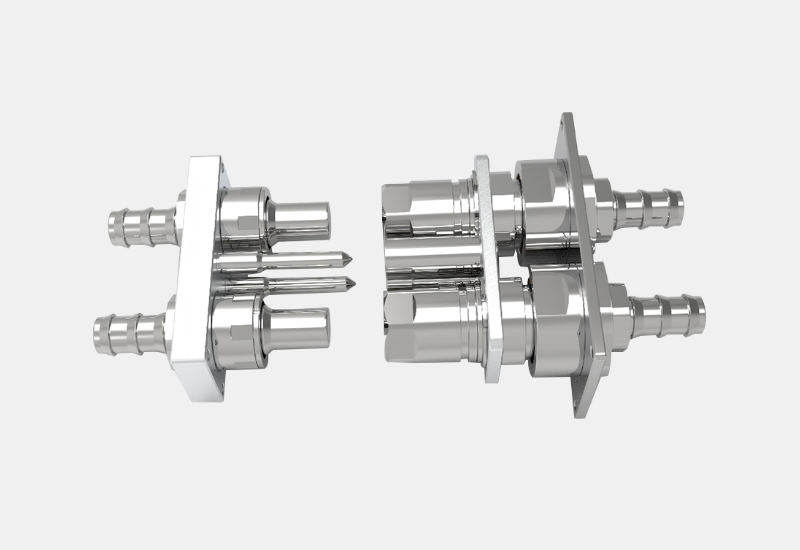

UQDB Dual-Channel Self-Guiding Blind-Mate Coupling
| Working Pressure | 0-20bar |
| Misalignment Data | X/Y ±2.5 mm, Z ±2.0 mm |
| Working Temperature | -40℃ ~ 120℃ |
| Body Material | 316L Stainless Steel |
| Seal Material | EPDM |
| Fluids | Ethylene glycol coolant, propylene glycol coolant, deionized water, etc |
| Product Features | Large misalignment tolerance, dual-channel design, and self-guiding achieved via guide pin and guide bushing |

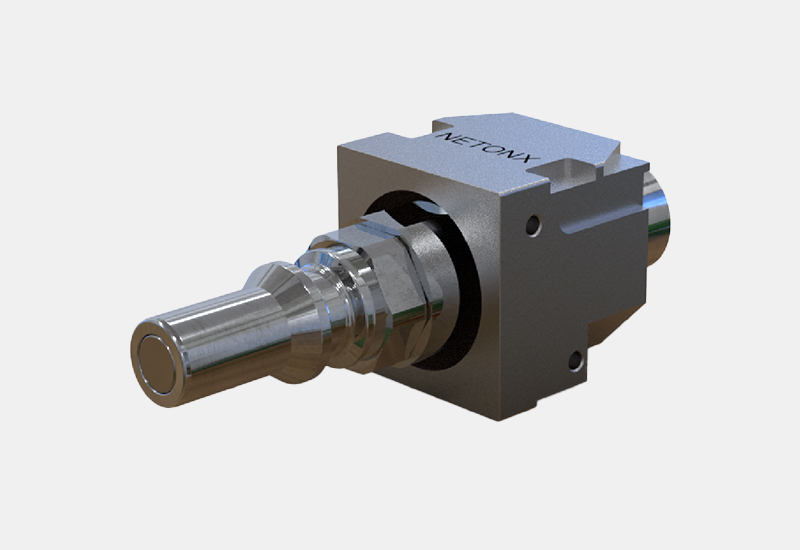

MGX Self-Adaptive Blind-Mate Module
| Working Pressure | 0-20bar |
| Misalignment Data | X/Y ±2mm, Z－2.0mm, Rotational Angle1.5° |
| Working Temperature | -40℃ ~ 120℃ |
| Body Material | 316L Stainless Steel |
| Seal Material | EPDM as standard; alternative seal materials including HNBR, FVMQ are available. |
| Fluids | Compatible fluids: deionized water, purified water, water ethylene glycol, water propylene glycol, fluorochemical fluid. |
| Product Features | NVIDIA specification compliant, interchangeable |
