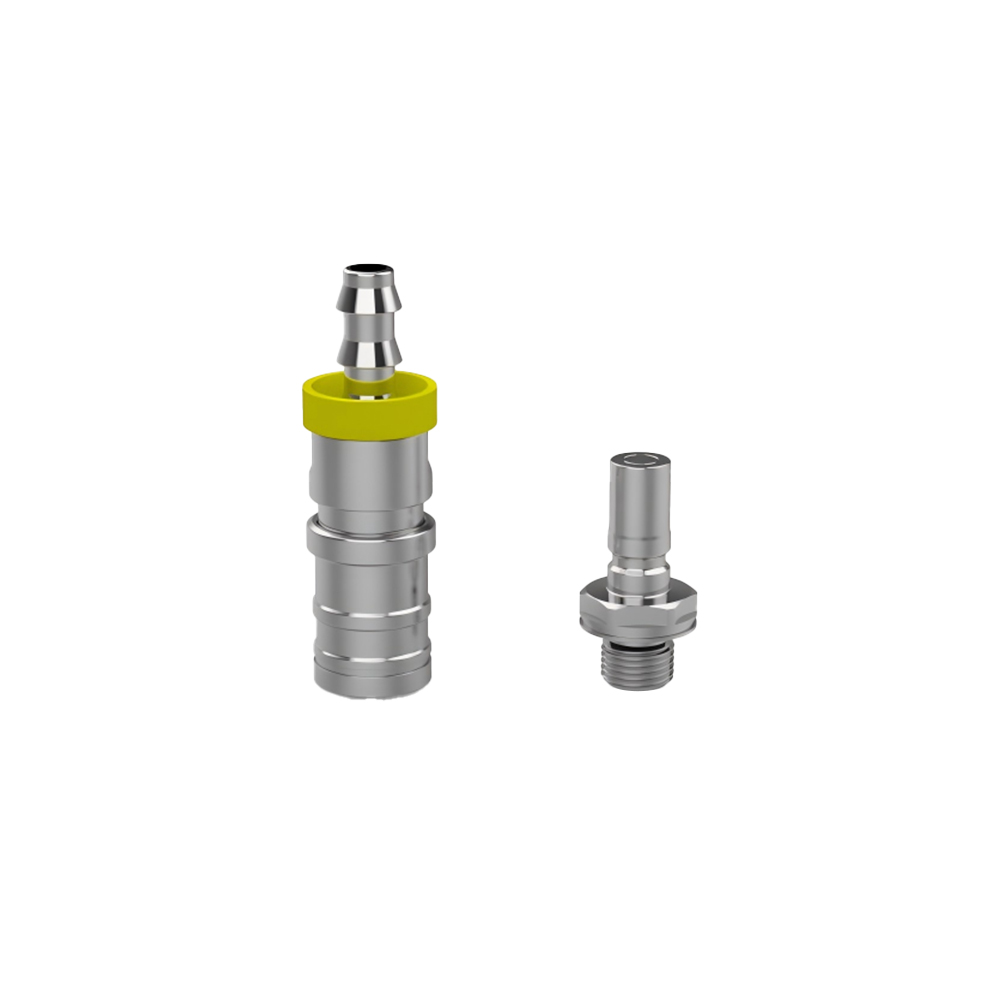

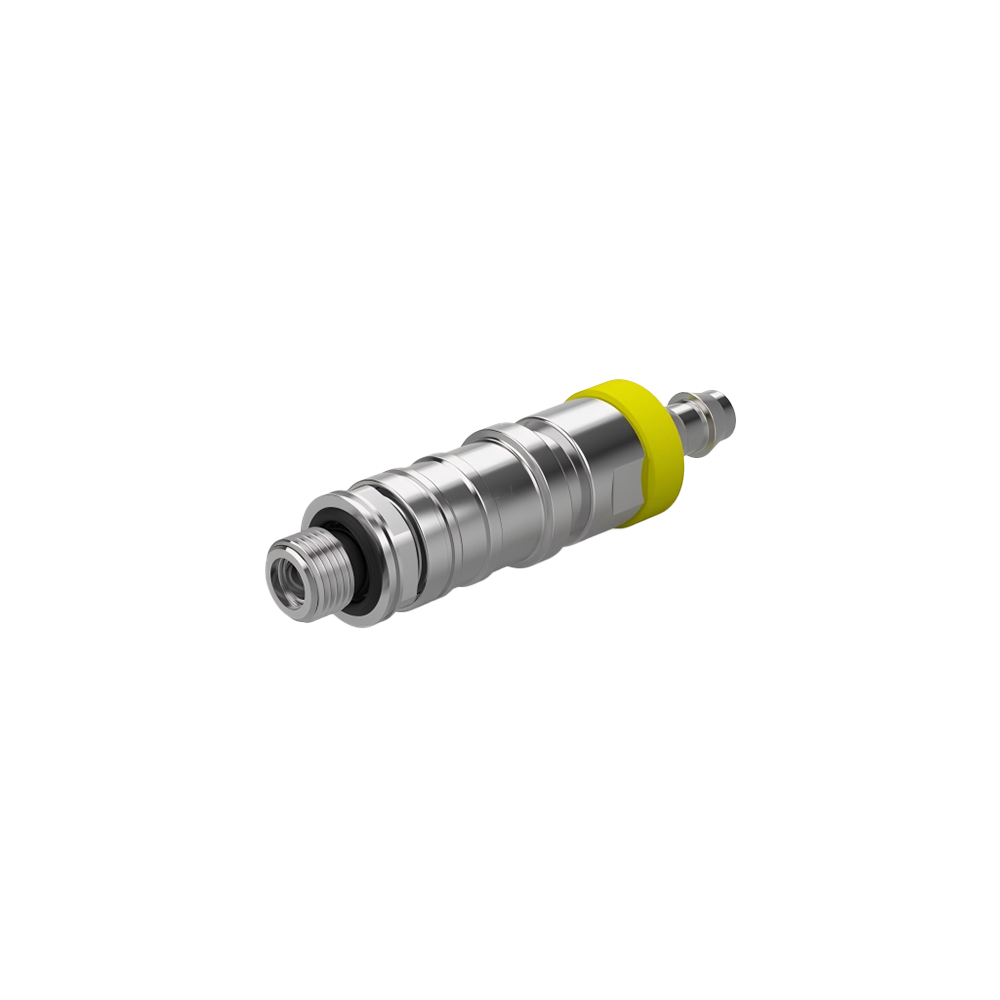

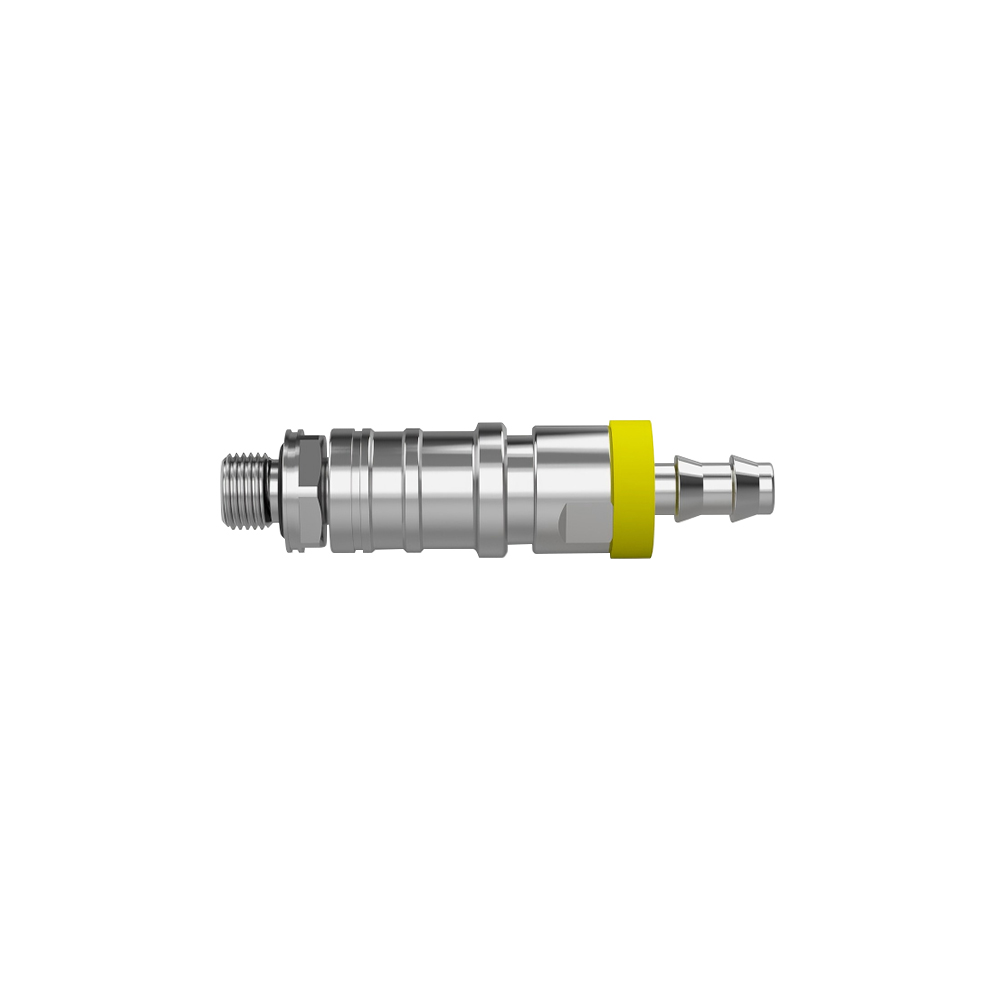

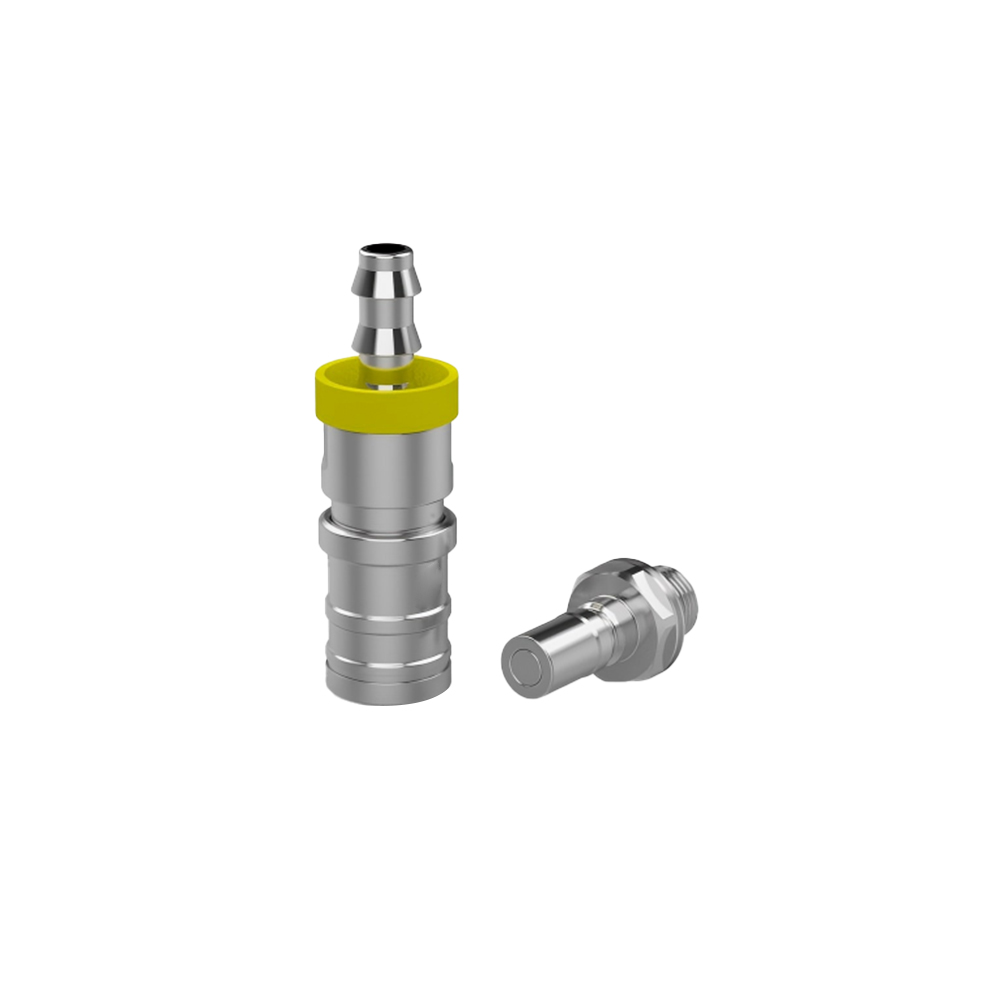

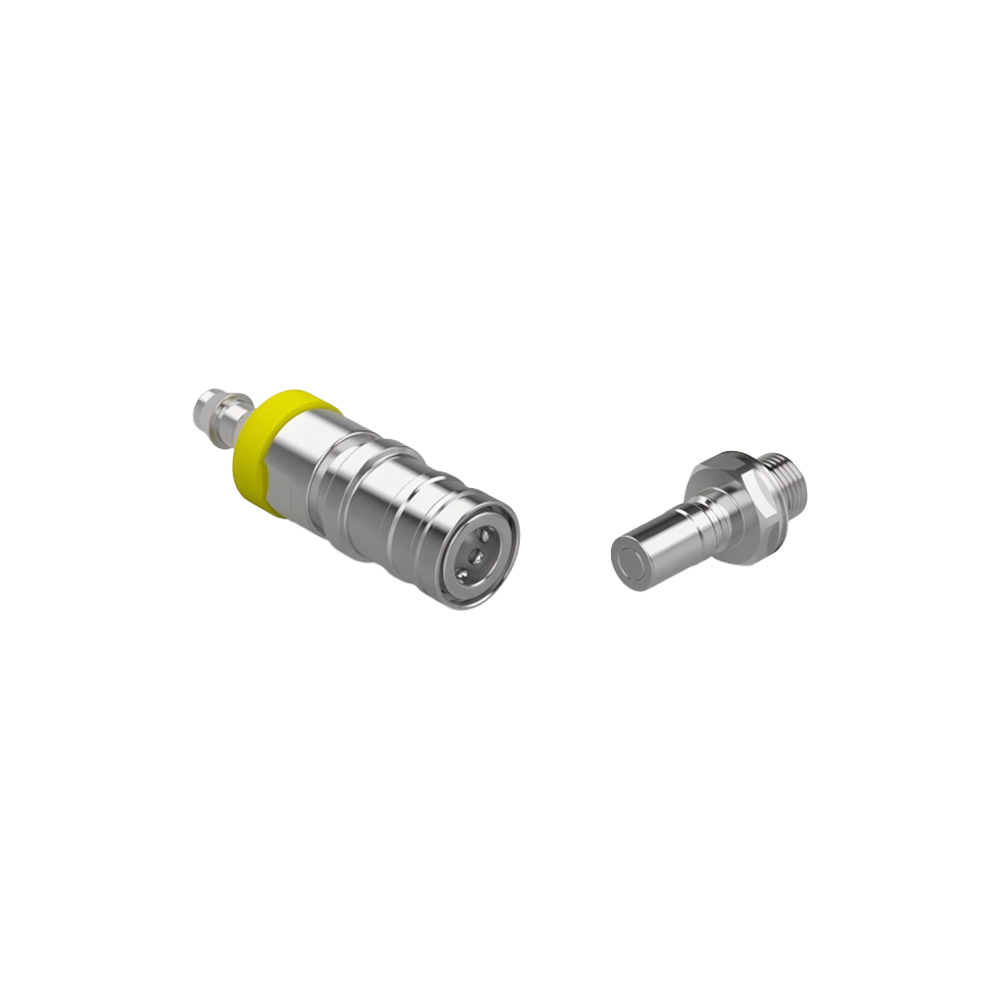

MBD manual liquid cooling quick disconnect coupling is a standardized fluid connection component developed for liquid cooling thermal management systems. Connection and disconnection are performed manually, making it suitable for cooling pipelines requiring frequent assembly, disassembly and maintenance. It is widely used in server liquid cooling, energy storage thermal management equipment, industrial cooling units and test equipment.
| Nominal Diameter | DN04 |
| Working Pressure | 0-20bar |
| Body Material | SS 316L |
| Working Temperature | -40°C ~ 120°C |
| Seal Material | EPDM |
| Fluids | Ethylene glycol coolant, propylene glycol coolant, deionized water, etc |
Zero Leakage
Hot disconnect at 6.9 bar
5,000 safe mating cycles
Low Flow Resistance
