Customized Engineering Solutions
Non-Standard Design for All Types of Liquid Cooling Equipment

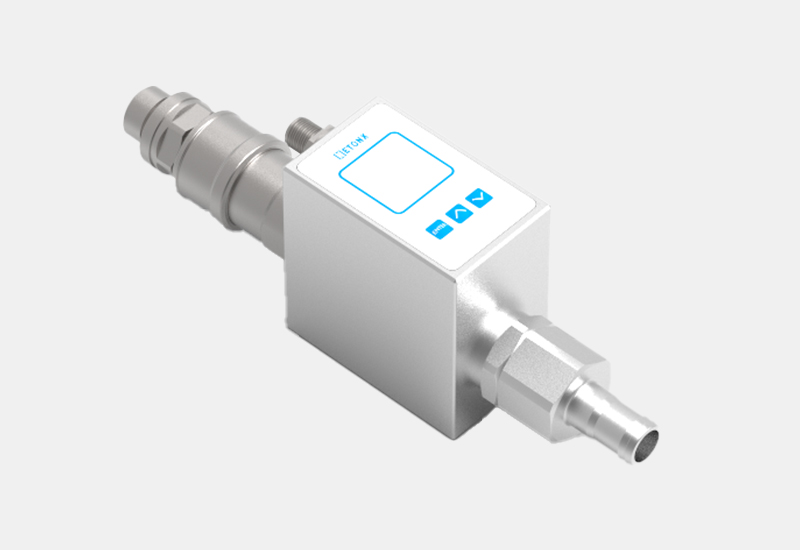

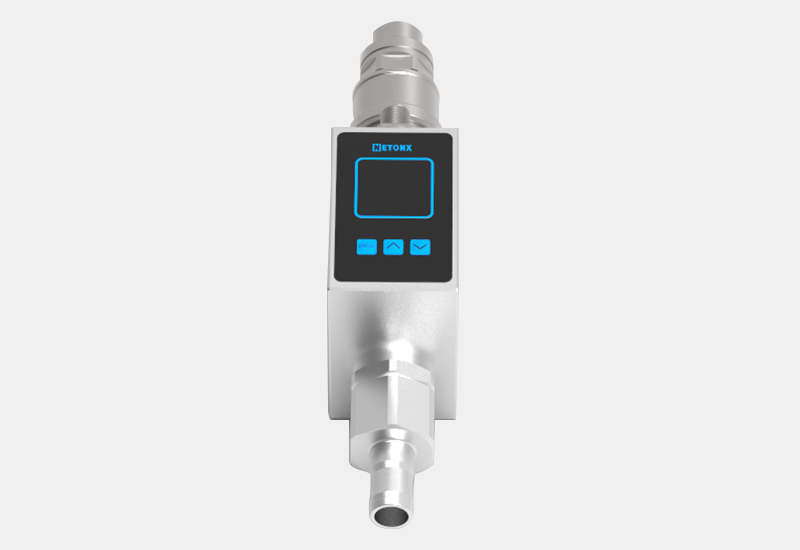

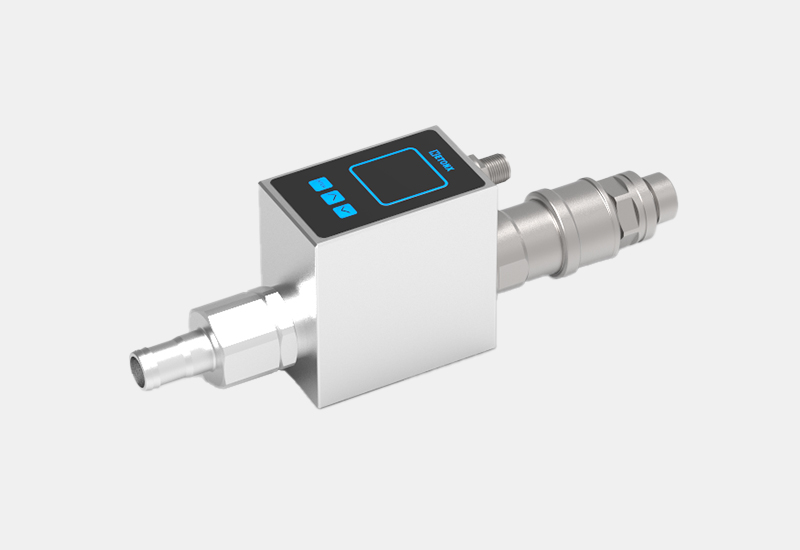

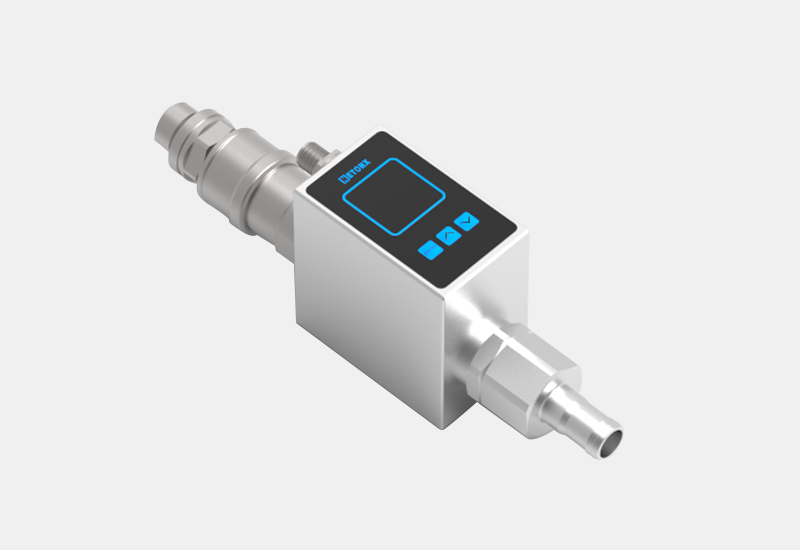

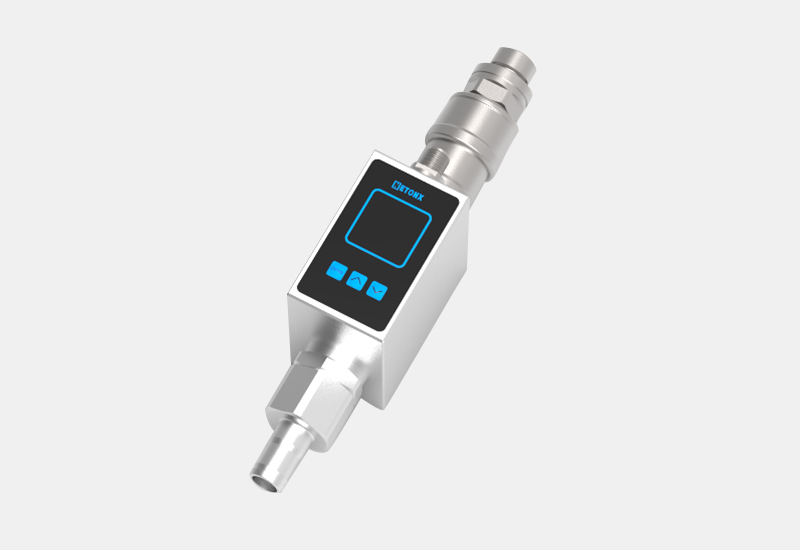

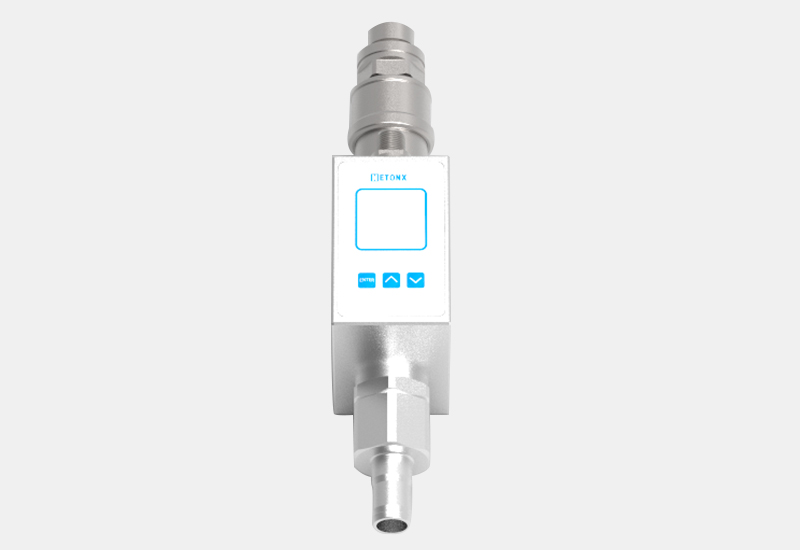

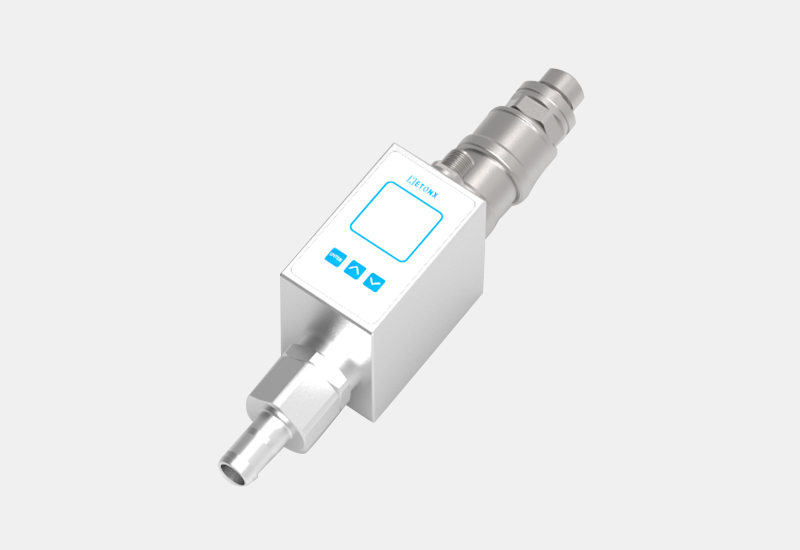

Quick‑disconnect connector for sensing and measurement
By integrating pressure, temperature and flow sensing, display and transmission functions into quick‑change connectors, it enables fast and convenient measurement and transmission of pressure, temperature and flow data within liquid cooling systems.

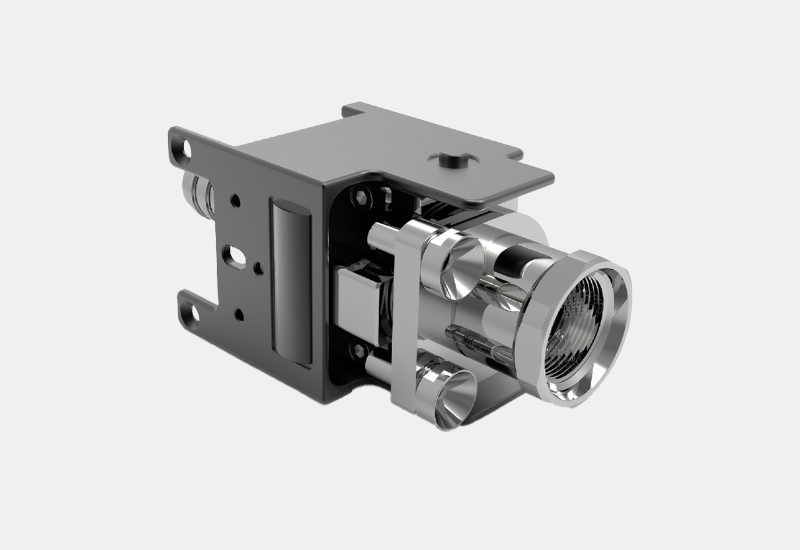

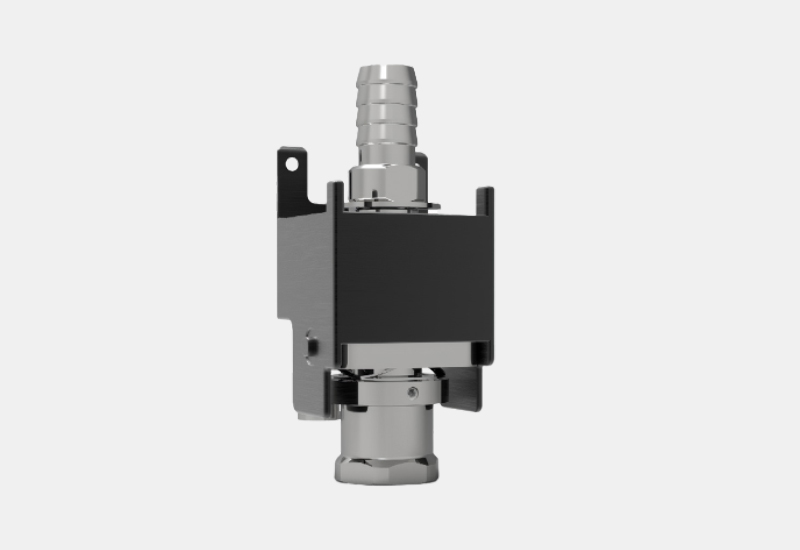

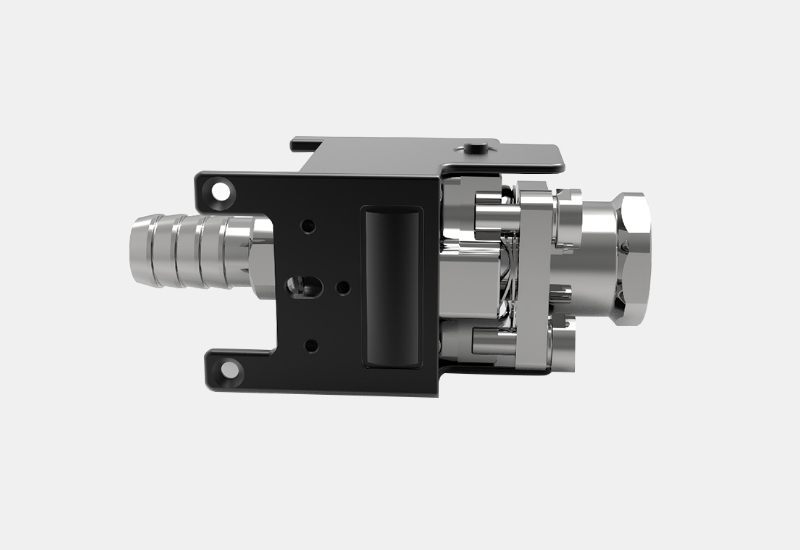

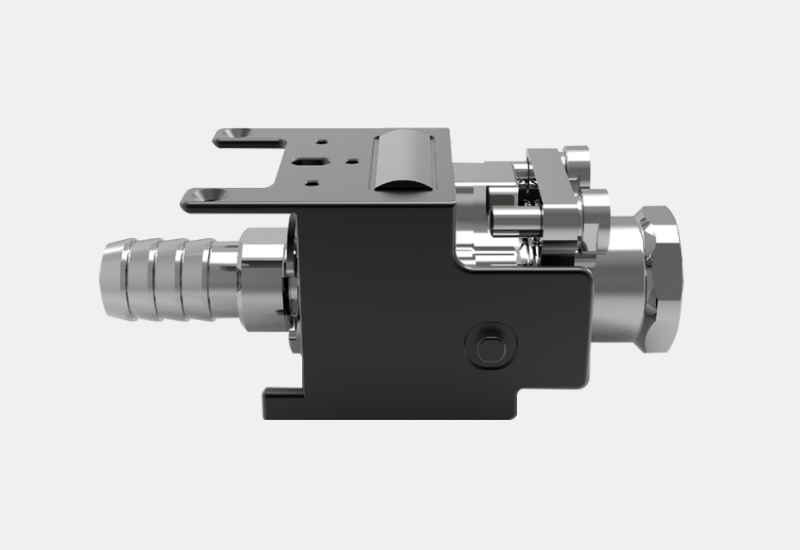

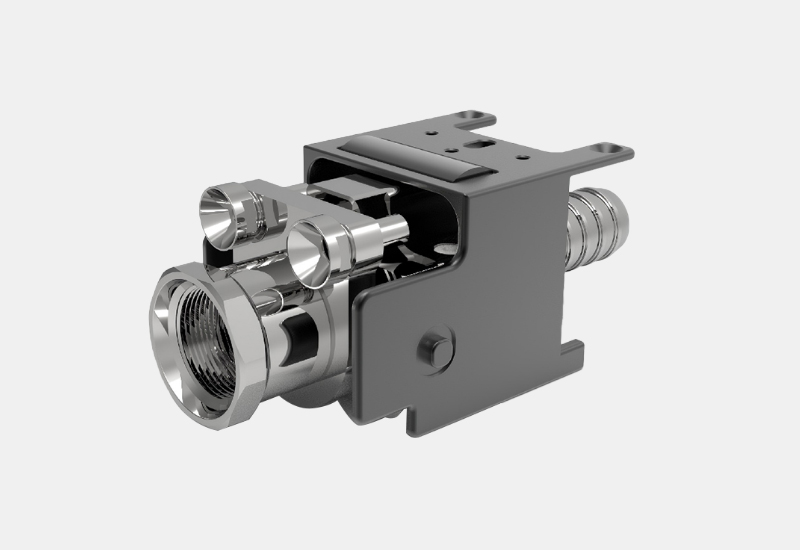

GCC Blind-Mate Coupling
| Working Pressure | -1-8.5bar |
| Misalignment Data | X/Y±2.5mm, Z－4mm, Rotational Angle2.5° |
| Working Temperature | 5℃ ~ 65℃ |
| Body Material | 316L Stainless Steel |
| Seal Material | EPDM |
| Fluids | Ethylene glycol coolant, propylene glycol coolant, deionized water, etc; |
| Product Features | Large tolerance, rotatable & self-centering |

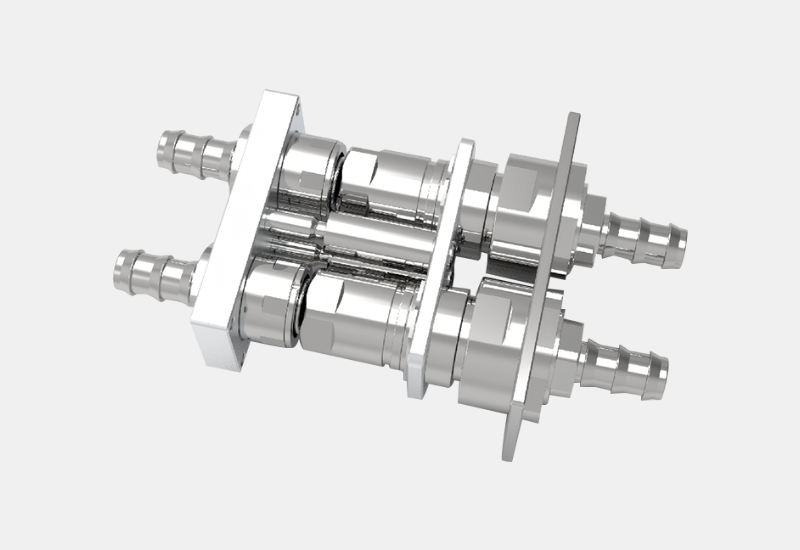

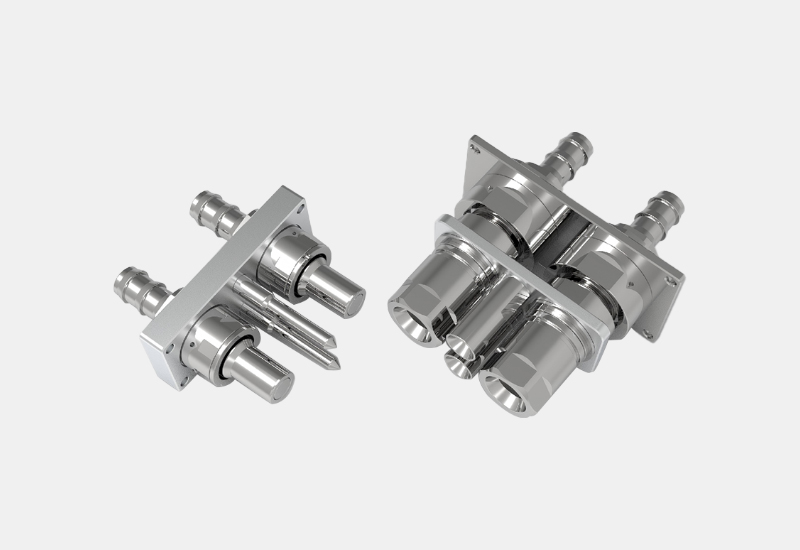

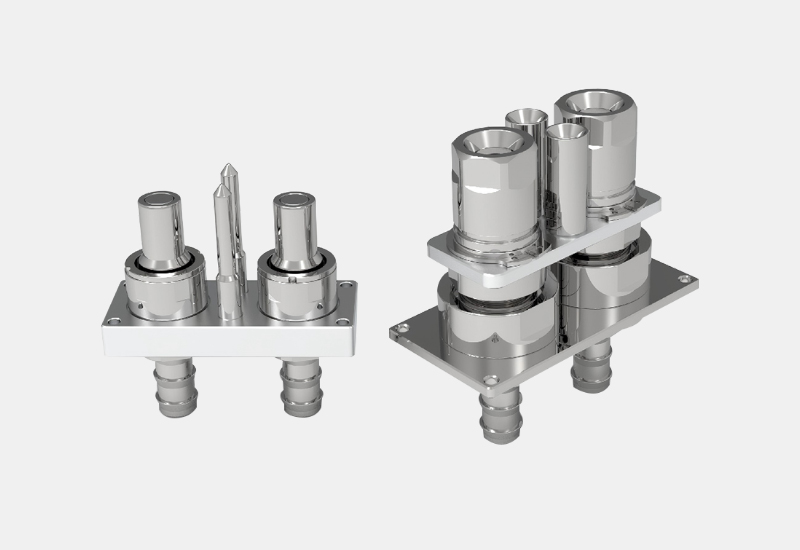

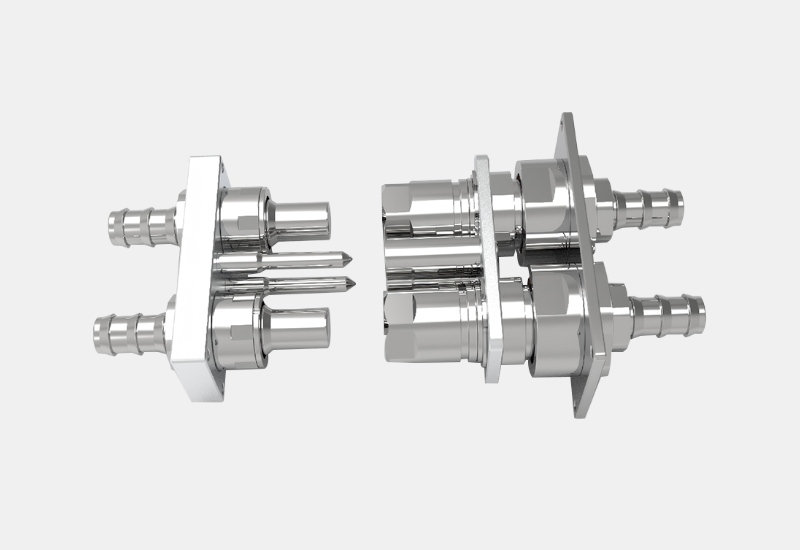

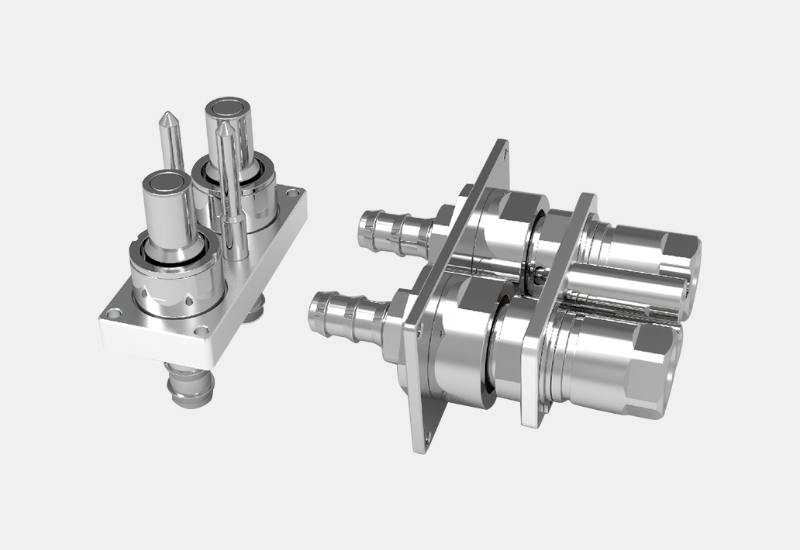

UQDB Dual-Channel Self-Guiding Blind-Mate Coupling
| Working Pressure | 0-20bar |
| Misalignment Data | X/Y ±2.5 mm, Z ±2.0 mm |
| Working Temperature | -40℃ ~ 120℃ |
| Body Material | 316L Stainless Steel |
| Seal Material | EPDM |
| Fluids | Ethylene glycol coolant, propylene glycol coolant, deionized water, etc |
| Product Features | Large misalignment tolerance, dual-channel design, and self-guiding achieved via guide pin and guide bushing |

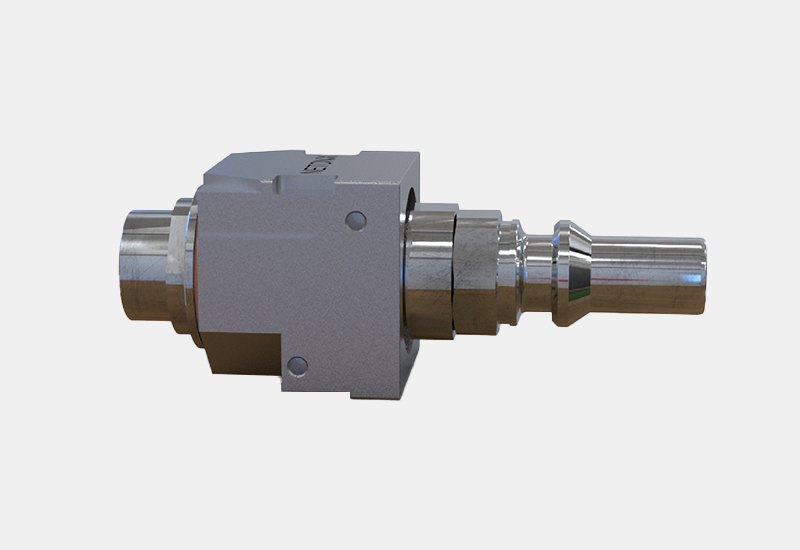

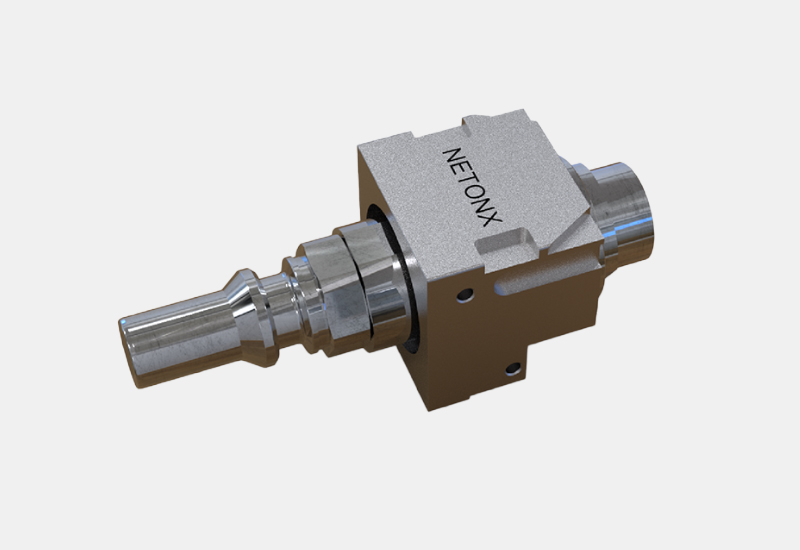

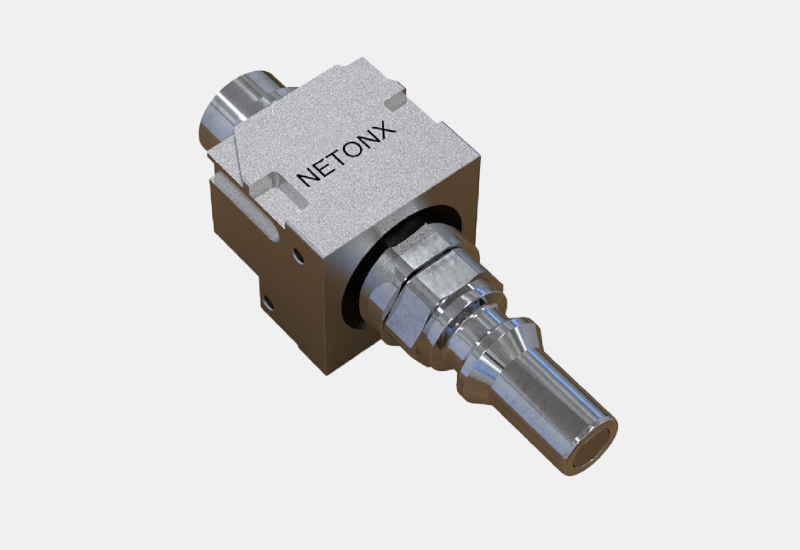

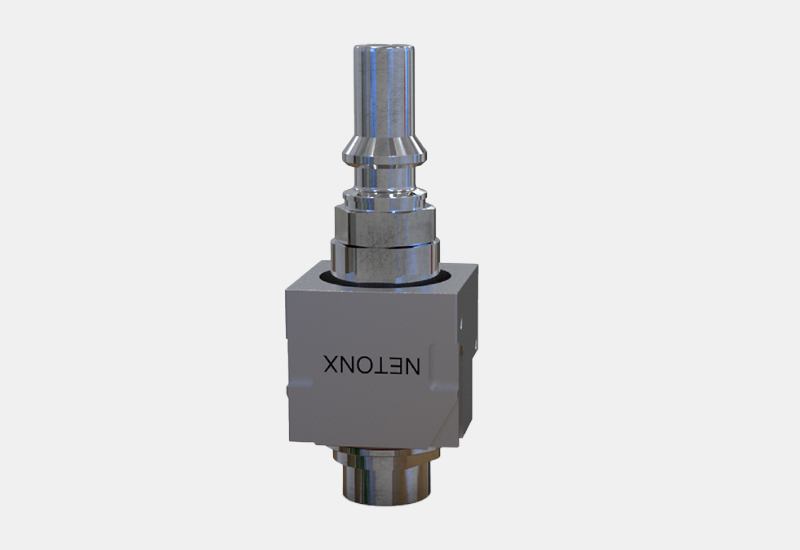

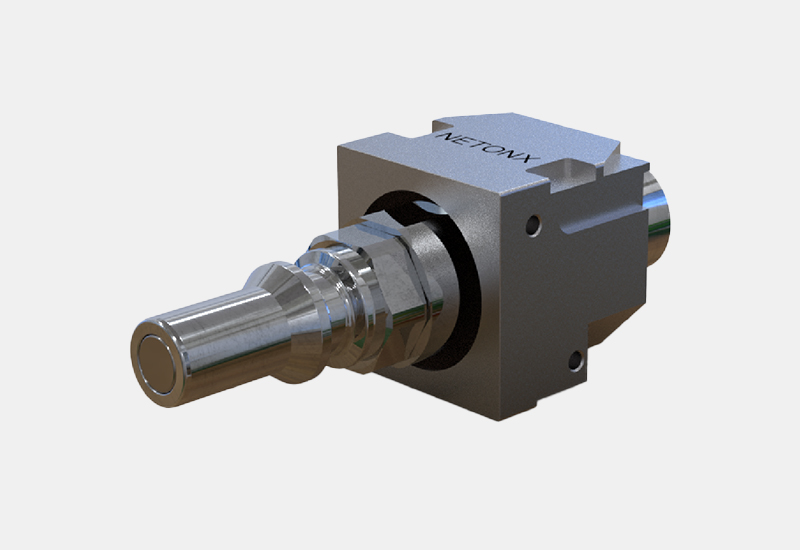

MGX Self-Adaptive Blind-Mate Module
| Working Pressure | 0-20bar |
| Misalignment Data | X/Y ±2mm, Z－2.0mm, Rotational Angle1.5° |
| Working Temperature | -40℃ ~ 120℃ |
| Body Material | 316L Stainless Steel |
| Seal Material | EPDM as standard; alternative seal materials including HNBR, FVMQ are available. |
| Fluids | Compatible fluids: deionized water, purified water, water ethylene glycol, water propylene glycol, fluorochemical fluid. |
| Product Features | NVIDIA specification compliant, interchangeable |
